SPECIFICATIONS

Air Volume: 65.26

Bearing: Fluid Bearing

Blade Quantity: 9

Brand Name: NONE

Certification: CE,RoHS

Choice: yes

Fan Life: 100000 hrs

Fan Size: 120mm

Fan Speed: 700 - 2400

High-concerned chemical: none

Model Number: ZB-360

Noise: 30dBA

Origin: Mainland China

Package: Yes

Power (W): 4.44

Power Interface: 4PIN

Series: ZB-360

Used For: Case,Radiator

Voltage: 12V

ZA/ZB-360 fans require your motherboard or controller to support at least 68 LED chips (some motherboards support adjusting the number of LED chips)

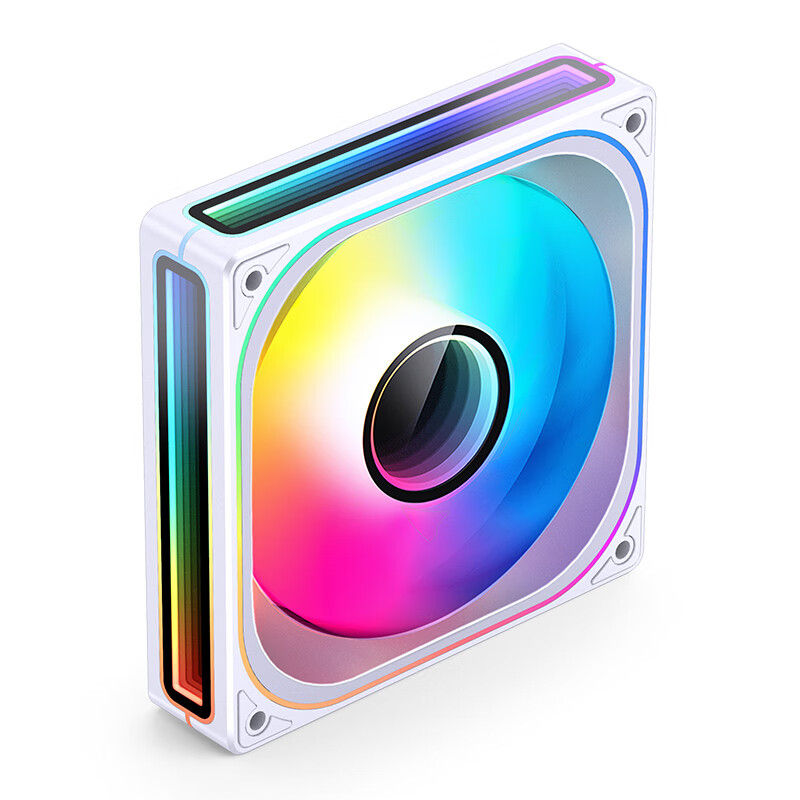

ZB-120

Fan size: 120mm (L) * 120mm (W) * 28mm (H) Speed: 700-2400rpm (± 10%) Airflow volume: 20.95-65.26 CFM Wind pressure: 0.45-3.20 mmH2O Noise level: 20.3-36.6 dB (A) Rated voltage: FAN DC12V LED 5V Rated current: FAN 0.20A LED 0.71A Power: FAN 2.40W LED 3.55W MTTF：≥ 20000h Room Temp: 25 ℃ Connector: PWM 4PIN ARGB 3PIN Number of LED beads: 32 around+9 parallel axis *Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).

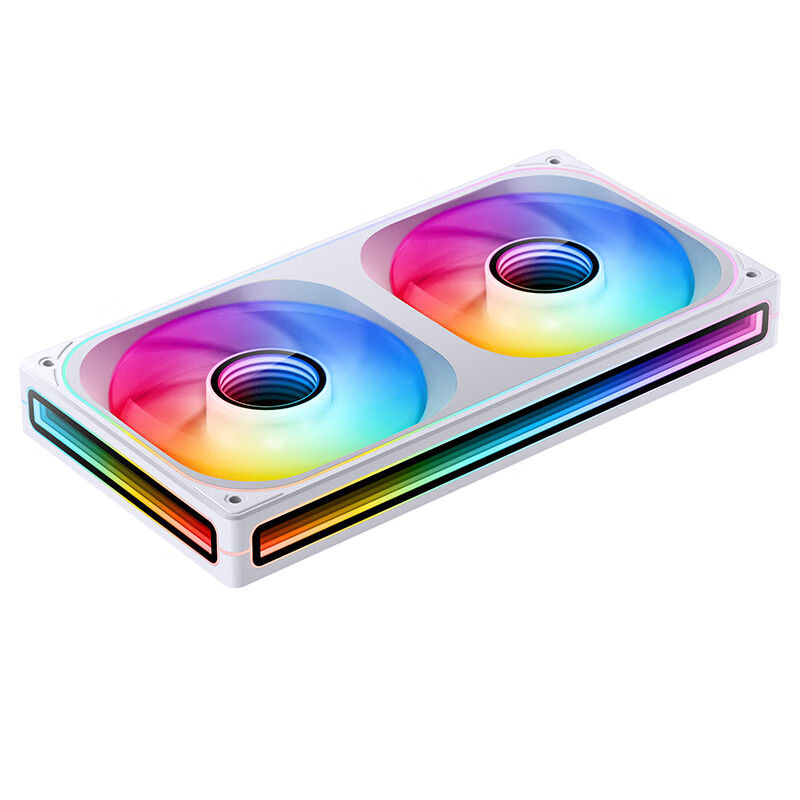

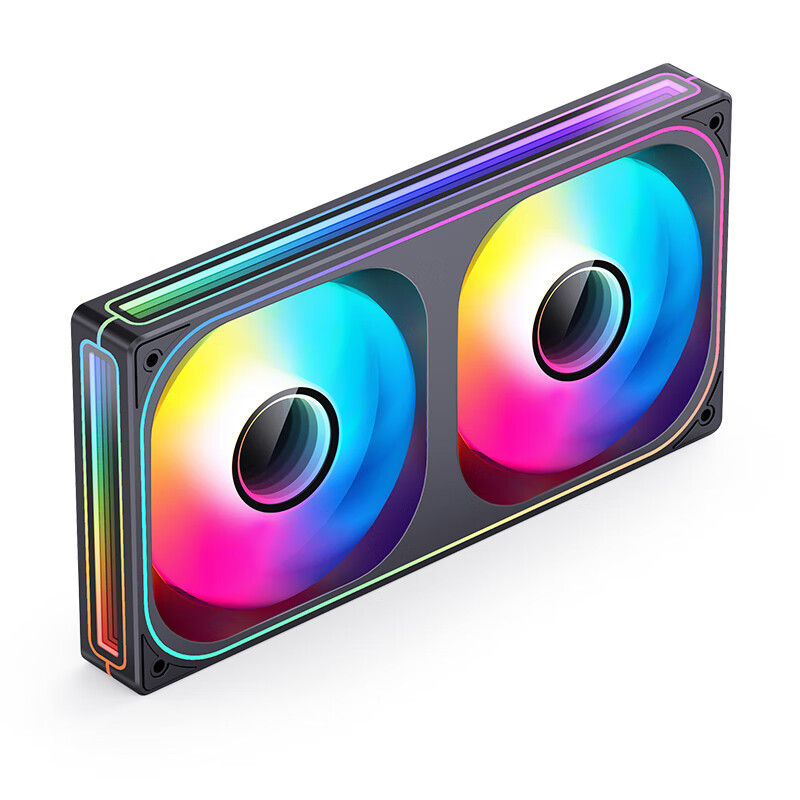

ZB-240

Fan size: 242mm (L) * 123mm (W) * 28mm (H) Speed: 700-2400rpm (± 10%) Airflow volume: 20.95-65.26 CFM Wind pressure: 0.45-3.20 mmH2O Noise level: 20.3-36.6 dB (A) Rated voltage: FAN DC12V LED 5V Rated current: FAN 0.37A LED 1.16A Power: FAN 4.44W LED 5.80W MTTF：≥ 20000h Room Temp: 25 ℃ Connector: PWM 4PIN ARGB 3PIN Number of LED beads: 32 around+9 parallel axis *Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).

ZB-360

Fan size: 362mm (L) * 123mm (W) * 28mm (H) Speed: 700-2400rpm (± 10%) Airflow volume: 20.95-65.26 CFM Wind pressure: 0.45-3.20 mmH2O Noise level: 20.3-36.6 dB (A) Rated voltage: FAN DC12V LED 5V Rated current: FAN 0.55A LED 1.35A Power: FAN 6.60W LED 6.75W MTTF：≥ 20000h Room Temp: 25 ℃ Connector: PWM 4PIN ARGB 3PIN Number of LED beads: 32 around+9 parallel axis *Please select a motherboard or controller that supports the corresponding number and specifications of LED chips (68 or more).
